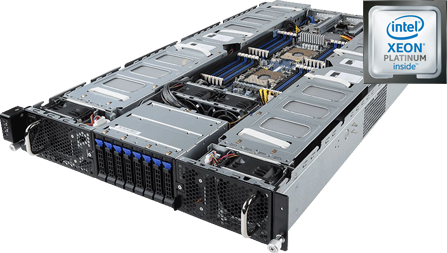

Gigabyte servers powered by 2nd gen Intel Xeon Scalable processors are a well designed combination of power, efficiency and security.
Speed, security, virtualisation and cost-effective enhancements have all been made over the previous generation.
Features:
2x PCIe Gen3 expansion slots, dual 1Gb/s LAN ports (Intel® I210-AT), 2x M.2 slots with PCIe Gen3 x4 interface
Redundant, hot-swap power option. 3x PCIe Gen3 expansion slots, dual 1Gb/s LAN ports (Intel® I350-AM2).
Redundant power option, 10x 2.5" SATAIII hot-swappable HDD/SSD bays, 3x PCIe Gen3 expansion slot
12x 3.5"/2.5" SATAIII hot-swappable HDD/SSD bays, 8x PCIe Gen3 expansion slots, dual 1Gb/s LAN ports (Intel® I210-AT).
Redundant power option, 3x PCIe Gen3 expansion slots, dual 1Gb/s LAN ports (Intel® I350-AM2)
Supports Intel® Optane™ DC Persistent Memory. Dual 1Gb/s LAN ports. Redundant power option.
12x 3.5" and 2x 2.5" SATAIII hot-swap HDD/SSD bays, 8x PCIe Gen3 expansion slots, redundant power option.
12x 3.5" and 2x 2.5" SATAIII hot-swap HDD/SSD bays, 8x PCIe Gen3 expansion slots, dual 1Gb/s LAN ports (Intel® I350-AM2)
The Gigabyte R281-3C2 (6NR2813C2MR-00), powered by the Intel Xeon SP family, has a huge 3TB maximum RAM capacity and comes with 12x 3.5” or 2x 2.5” SATA hot-swappable HDD/SSD drive bays.
10x 2.5" U.2 hot-swappable HDD/SSD bays, dual 1Gb/s LAN ports (Intel® I350-AM2), redundant power option.
Redundant power option, 26x 2.5" SATAIII hot-swappable HDD/SSD bays, 8x PCIe Gen3 expansion slots,,dual 1Gb/s LAN ports (Intel® I350-AM2)
Redundant power option, 8x PCIe Gen3 expansion slots, 4x 2.5" U.2, 22x SATA/SAS hot-swap HDD/SSD bays
Supports up to 3x double slot GPU cards, 24x 2.5" SATAIII hot-swappable HDD/SSD bays, 8x PCIe Gen3 expansion slots
36x 3.5" SATA/SAS hot-swap HDD/SSD bays, 2x 2.5" SATA hot-swap SSD bays for booting device, SAS expander with 12Gb/s transfer speed, 2x 10Gb/s SFP+ and 2x 1Gb/s LAN ports
2U - 2 nodes with rear access to the node trays, supports up to 2x double slot GPU cards, redundant power option
Supports 5G network infrastructure. Up to 4 x NVIDIA® Tesla® PCIe GPGPU cards. NVIDIA® NGC™ Ready server Redundant power option.
Supports up to 8x double slot GPU cards, 2x 10Gb/s BASE-T LAN ports, 8x 2.5" hot-swappable HDD/SSD bays, redundant power option
Supports Intel® Optane™ DC Persistent Memory. 2x 10Gb/s SFP+ and 2x 1Gb/s LAN ports. 36x 3.5" SATA/SAS hot-swap HDD/ SSD bays, 6x 2.5" SATA/SAS/NVMe hybrid hot-swap bays.
NVIDIA® validated GPU platform, supports up to 4x double slot GPU cards, 2x 10Gb/s BASE-T and 2 x 1Gb/s LAN ports, redundant power option
Supports Intel® Optane™ DC Persistent Memory. Dual 1Gb/s LAN ports (Intel® I350-AM2). Aspeed® AST2500 remote management controller.
Supports up to 8x double slot GPU cards, 2x 10Gb/s BASE-T LAN ports, redundant power option, 8x 2.5" hot-swappable HDD/SSD bays
2U - 2 nodes with rear access to the node trays, supports up to 2x double slot GPU cards, 4x 10Gb/s BASE-T LAN ports (Intel® X550-AT2)
2U - 4 nodes with rear access to the node trays, 12x 3.5" SAS/SATA hot-swappable HDD/SSD bays, 8x Low profile PCIe Gen3 expansion slots
2U - 4 nodes with rear access to the node trays, 8x 2.5" U.2 and 16 x SATA/SAS hot-swappable HDD/SSD bays, 8x Low profile PCIe Gen3 expansion slots, redundant power option
NVIDIA validated GPU platform, 2x 10Gb/s BASE-T LAN ports, 8x 2.5" hot-swappable HDD/SSD bays, redundant power option
Up to 8x NVIDIA Tesla® V100 PCIe GPGPU cards, 2x 10Gb/s BASE-T LAN ports (Intel® X550-AT2), 2x GbE LAN ports (Intel® I350-AM2), redundant power option.
2U - 4 nodes with rear access to the node trays, 8x 10Gb/s BASE-T LAN ports (Intel® X550-AT2), 12x 3.5" SAS/SATA hot-swappable HDD/SSD bays
Up to 8x NVIDIA Tesla® V100 PCIe GPGPU cards. Dual 10Gb/s BASE-T LAN ports. Aspeed® AST2500 remote management controller. Redundant power option.
2U - 4 nodes with rear access to the node trays. 8 x 10Gb/s LAN ports. Aspeed® AST2500 remote management controller. Redundant power supply,
Up to 10x NVIDIA Tesla® V100 PCIe GPGPU cards, 2x 10Gb/s BASE-T LAN ports (Intel® X550-AT2), 2x GbE LAN ports (Intel® I350-AM2), redundant power option
2U - 4 nodes with rear access to the node trays. Supports Intel® Optane™ DC Persistent Memory. Optimised performance with Mellanox Infiniband products.
Up to 10x NVIDIA Tesla® V100 PCIe GPGPU cards, 2x 10Gb/s BASE-T LAN ports (Intel® X550-AT2), 2x GbE LAN ports (Intel® I350-AM2), redundant power option
2U - 4 nodes with rear access to the node trays. Supports Intel® Optane™ DC Persistent Memory. Redundant power.
2U - 4 nodes with front access to the node trays, 8x 10Gb/s BASE-T LAN ports (Intel® X550-BT2), 4x front side and 8x rear side low profile PCIe Gen3 x16 expansion slots
Up to 8x NVIDIA Tesla® V100 SXM2 modules, up to 300GB/s GPU interconnection by NVIDIA® NVLINK™ technology, 5x low profile PCIe Gen3 expansion slots.
60x 3.5" SATA hot-swappable HDD bays, 6x 2.5" U.2, 2x SATA/SAS SSD hot-swappable SSD bays in rear side Dual 10Gb/s SFP+ and Dual 1Gb/s LAN ports.
Supports 5G network infrastructure, up to 32 x PCIe low profile GPU slots, up to 8 x PCIe low profile high speed LAN connectivity slots
Gigabyte Servers powered by 2nd Gen Intel Xeon Scalable Processors enjoy breakthrough performance, significant flexibility and airtight security. The processors in this range are capable of handling even the most demanding applications, including the likes of artificial intelligence, high performance computing (HPC), in-memory analytics, autonomous driving and network transformation.
Performance bottlenecks are eliminated as 2nd Gen Intel Xeon Scalable Processors feature the industry leading memory and I/O capacity and deliver breakthrough performance. With the addition of Intel Quick Assist Technology (QAT), applications can be accelerated.
Intel Xeon SP based Gigabyte servers feature security without compromise, incorporating a variety of features that help protect your system.
Intel QAT provides a software-enabled base for security and authentication. Intel Key Protection Technology, enabled via Intel QAT, is on hand to help with secure private key management. These features combine to provide a key foundation for secure IT. They are vitally important to handling the ever-increasing and evolving threats across both physical and virtual infrastructures.
Re-designed from the ground up for huge improvements, the era-defining 2nd Gen Intel Xeon Scalable processors far surpass the standards set by previous gen processors. Find more information on the range below.
 |
 |
 |
 |
|---|---|---|---|
| Entry Ideal for smaller businesses, Intel Xeon Bronze processors are developed to work best with basic storage servers. |
Mid The Intel Xeon Silver is optimised for middling IT organisations that are still developing. It delivers the speed and security you need for your data centre. |
High
Intel Xeon Gold processors provide high performance and high-level reliability. Featuring hardware-enhanced security, this option is ideal for demanding and high intensity workloads. |
Enterprise Intel Xeon Platinum processors provides arguably the best performance in the industry for mission critical and cloud workloads, AI, machine learning and real time analytics. It also delivers humungous leaps in I/O, memory, storage and network technologies. |
| up to 8 Cores | up to 12 Cores | up to 22 Cores | up to 28 Cores |
| up to 2 Sockets | up to 2 Sockets | up to 4 Sockets | up to 8+ Sockets |
| up to 1.5TB | up to 1.5TB | up to 6TB | up to 12TB |
Powered by the 2nd Gen Intel Xeon Scalable processor family, these flexible Gigabyte servers are able to excel across applications. Solutions from this range allow you to gain insights from advanced real time analytics as well as emerging imperatives like artificial intelligence, autonomous driving, 5G and a lot more.
Introducing a server from this range to your data centre will allow you to take advantage of fresh opportunities discovered via advanced, data fuelled methods.
| Intel Xeon Processor E5-2600 v4 | 2nd Gen Intel Xeon Scalable Processor | |
|---|---|---|
| Cores Per Socket | Up to 22 | Up to 28 |
| Threads Per Socket | Up to 44 threads | Up to 56 threads |
| Last-level Cache (LLC) | Up to 55 MB | Up to 38.5 MB (non-inclusive) |
| QPI/UPI Speed (GT/s) | 2x QPI channels @ 9.6 GT/s | Up to 3x UPI @ 10.4 GT/s |
| PCIe* Lanes /Controllers /Speed(GT/s) | 40 / 10 / PCIe 3.0 (2.5, 5. 8 (GT/s) | 48 / 12 / PCIe 3.0 (2.5, 5,8 GT/s) |
| Memory Population | 4 channels of up to 3 RDIMMs, LRDIMMs, or 3DS LRDIMMs |
6 channels of up to 2 RDIMMs, LRDIMMs, or 3DS LRDIMMs |
| Max Memory Speed | Up to 2400 | Up to 2666 |
| TDP (W) | 55W-145W | 70W-205W |
Our Rigorous TestingBefore leaving our UK workshop, all Broadberry server and storage solutions undergo a rigorous 48 hour testing procedure. This, along with the high-quality industry leading components ensures all of our server and storage solutions meet the strictest quality guidelines demanded from us.
Un-Equaled FlexibilityOur main objective is to offer great value, high-quality server and storage solutions, we understand that every company has different requirements and as such are able to offer un-equaled flexibility in designing custom server and storage solutions to meet our clients' needs.
We have established ourselves as one of the biggest storage providers in the UK, and since 1989 supplied our server and storage solutions to the world's biggest brands. Our customers include:
