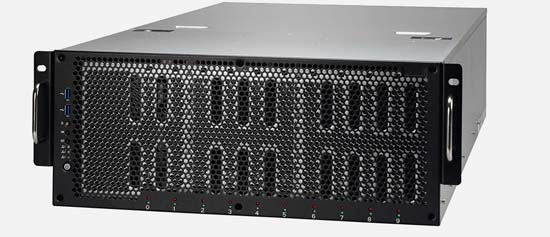

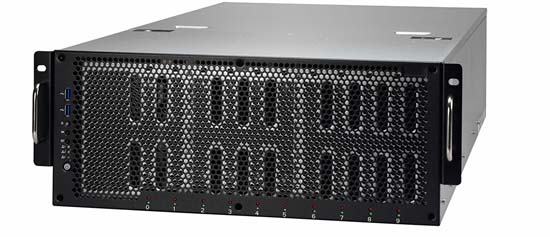

GPU Computing 4U Supercomputer, 8x Tesla, Xeon Phi or GTX-Titan GPU Cards
Buy with confidence knowing all Broadberry CyberServe rack servers are backed up by our 3 year warranty, with further warranty upgrade options available.
The Broadberry range of CyberServe® rackmount are trusted as the server of choice for thousands of companies from SMBs to enterprise's across the globe.
This system can be configured with SATA drives for cost-effective 12gb/s storage.
Designed for optimal performance, the dual-processor Broadberry GPU Server FT77CB7079 supports the latest format Intel Xeon® processor E5-2600 v4
Powered by the latest Intel Xeon E5 2600 v4 family of Processors, the Broadberry GPU Server FT77CB7079 boosts performance by up to 50% over previous generation Xeons.
Boasting Intel Integrated I/0 on the processor, the Broadberry GPU Server FT77CB7079 accelerates data availability to the processing cores, reducing latency by up to 30%.
The Broadberry GPU Server FT77CB7079 rackmount server intelligently delivers up to 45% more performance per watt to the CPU, increasing computing power whilst maintaining maximum energy efficiency.
System | Form Factor | 4U Rackmount | |
Chassis Model | FT77C | ||
Dimension (D x W x H) | 30.31" x 17.24" x 6.93" (770 x 438 x 176mm) | ||
Motherboard | S7079GM2NR-2T-N | ||
Gross Weight | 35 kg | ||

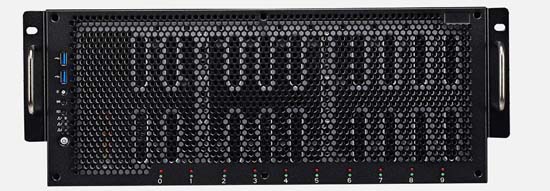

Front Panel | Buttons | (1) RST / (1) ID / (1) PWR w/ LED | |
LEDs | (1) HDD / (2) LAN / (1) ID / (1) IPMI/Warning | ||
I/O Ports | (2) USB ports | ||
External Drive Bay | Type / Q'ty | 3.5"/2.5" Hot-Swap / (10) | |
HDD backplane support | SAS / SATA 6.0Gb/s | ||
System Cooling Configuration | FAN | (5+1) hot-swap 12cm fans | |
Power Supply | Type | RPSU | |
Input Range | 100-127V AC / 200-240V AC | ||
Output Watts | 2,000 Watts (100-127Vac input) / 3,200Watts (200-240Vac input) | ||
Efficiency | 80 plus Platinum | ||
Redundancy | 2+1 | ||
Serviceability | Hot-swap | ||
Processor | Socket Type / Q'ty | LGA2011 / (2) | |
Supported CPU Series | Intel Xeon Processor E5-2600 v3 series processors | ||
Thermal Design Power (TDP) wattage | Max up to 145W | ||
System Bus | Up to 9.6/ 8.0/ 6.4 GT/s with Intel QuickPath Interconnect (QPI) support | ||
Chipset | Switch IC | (4) PLX PEX8747 | |
PCH | Intel C612 | ||
Memory | Supported DIMM Qty | (12)+(12) DIMM slots | |
DIMM Type / Speed | RDIMM DDR4 2133/1866/1600 / LRDIMM DDR4 2133/1600 / LRDIMM 3DS DDR4 2133/1600 | ||
Capacity | Up to 768GB RDIMM/ 1,536GB LRDIMM/ 3,072GB LRDIMM 3DS *Follow latest Intel DDR4 Memory POR | ||
Memory channel | 4 Channels per CPU | ||
Memory voltage | 1.2V | ||
Expansion Slots | Pre-install TYAN Riser Card | M2210-L8-1F, PCI-E Gen3 x8 slot (left) | |
PCI-E | (8) PCI-E Gen3 x16 slots / (2) PCI-E Gen3 x8 slots(one for mezzanine card) / (3) PCI-E Gen2 x1 slots | ||
LAN | Port Q'ty | (2) 10GbE ports (1 port shared with IPMI) | |
Controller | Intel X540-AT2 | ||
Storage | SATA | Connector | (2) Mini-SAS (8-ports) + (2) SATA (totally support 10 ports) |
Controller | Intel C612 | ||
Speed | 6.0 Gb/s | ||
RAID | RAID 0/1/10/5 (Intel RST) | ||
Graphic | Connector type | (1) Display/USB 2.0 port | |
Resolution | Up to 1920x1200 | ||
Chipset | Aspeed AST2400 | ||
I/O Ports | USB | (2) USB3.0/2.0 ports (at front) | |
VGA | (1) Display/USB2.0 port (via a dongle cable) | ||
RJ-45 | (2) ports | ||
System Monitoring | Chipset | Aspeed AST2400 | |
Temperature | Monitors temperature for CPU & memory & system environment | ||
Voltage | Monitors voltage for CPU, memory, chipset & power supply | ||
LED | Over temperature warning indicator / Fan & PSU fail LED indicator | ||
Others | Watchdog timer support | ||
Server Management | Onboard Chipset | Onboard Aspeed AST2400 | |
AST2400 IPMI Feature | IPMI 2.0 compliant baseboard management controller (BMC) / Supports storage over IP and remote platform-flash / USB 2.0 virtual hub | ||
AST2400 iKVM Feature | 24-bit high quality video compression / 10/100 Mb/s MAC interface | ||
BIOS | Brand / ROM size | 16MB | |
Feature | SMBIOS 2.7/PnP/Wake on LAN / ACPI 3.0 power management/PXE boot | ||
Regulation | FCC (DoC) | Class A | |
CE (DoC) | Yes | ||
C-Tick | Yes | ||
VCCI | Yes | ||
Safety | CB/ LVD | ||
Operating Environment | Operating Temp. | 10 C ~ 35 C (50 F~ 95 F) | |
Non-operating Temp. | - 40 C ~ 70 C (-40 F ~ 158 F) | ||
In/Non-operating Humidity | 90%, non-condensing at 35 C | ||
RoHS | RoHS 6/6 Compliant | Yes | |
Package Contains | Manual | (1) Quick Installation Guide | |
Installation CD | (1) TYAN installation CD | ||
Cable | Others | (1) Display/USB2.0 port via a dongle cable / (8) GPU power cables | |
Barebone | (1) FT77C-B7079 w/NV Tesla-aware FW Barebone | ||
Others | (1) CPU air duct / (8) For NV-Tesla GPU card brackets |
The Broadberry GPU Server FT77CB7079 is a 4U rackmount server configurable with 2x Xeon E5 2600v4 Dual Processor series range of processors. Built using the latest enterprise-class server technology, the Broadberry GPU Server FT77CB7079 has 8x SATA and 12Gb/s SAS Hot-Swap Drives and is ideal for those requiring a combination of high performance and density with its 24x DDR4 ECC Registered memory banks providing up to GB of high-performance server memory. The Broadberry GPU Server FT77CB7079 boasts as just a few of its core features.
Powered by Intel Xeon E5 2600 v4 Processors
Powered by 2x Intel Xeon E5-2600 v4 processors, the boasts the latest processor technologies you'd expect from an enterprise-class server, including accelerating critical workloads such as database transactions and vector operations and more.
Key Features
The powerful new Intel® Xeon® processor E5-2600 v4 product family offers versatility across diverse data centre workloads.
With the full line-up of Intel Xeon E5-2600 v4 processors to choose from, the can be configured with up to 44 high-performance processing cores or 88 hardware threads, making this power-house server the ideal choice for a wide range of business applications from virtualisation to high-performance computing.
These processors are designed to help IT address the ever-growing demand for increased performance, agility, operational efficiency, scale-on demand and security throughout their server, storage and network infrastructure while minimising their total cost of ownership.
If you're upgrading from the past generation of E5 processors (v3 range), you'll notice major advances in processor technology in the resulting in up to 47% faster performance than the previous generation of servers powered by the v3 range.
The new v4 range of processors offers extra cores, a smattering of architectural refinements and performance advancements such as up to 55MB of last-level cache, support for 2400MHz DDR4 memory and up to 2kb of data L1 cache per processing core.
The powered by Intel® Xeon® processor E5-2600 v4 product family offers enterprises, cloud service providers and telecommunication service provider's high performance and value, while accelerating their move toward the next-generation efficiencies of software defined infrastructure.
Built for Virtualisation
Configured with the E5-2600 v4 processor and offering plenty of high-performance memory, the is built for virtualisation.
Intel® Virtual Machine Control Structure (VMCS) shadowing extends root virtual machine monitor (VMM)-like privileges to a guest VMM to provide more flexible support for legacy code and deep security monitoring. Additional virtualisation enhancements enable fewer and faster transitions to the VMM through Posted Interrupts and other innovations, so more compute cycles can be devoted to virtual machine performance.
Support for Page Modification Logging has also been added to enable high-end availability for virtual machines while reducing performance overhead.
Process Data Faster with DDR4 Memory
Configurable with DDR4 memory, the Broadberry GPU Server FT77CB7079 uses the latest enterprise-grade memory technology which offers 50% more bandwidth and 40% better energy efficiency than servers configured with DDR3 ram, resulting in more speed, more bandwidth and better efficiency computing.
Typically a server's greatest limitation is memory, especially in the memory-dependant applications the Broadberry GPU Server FT77CB7079 has been designed to excel in such as cloud-computing, virtualisation and HPC. The Broadberry GPU Server FT77CB7079 overcomes this traditional problem by doubling memory capacity of servers built on DDR3 memory in the same amount of DIMM slots making the Broadberry GPU Server FT77CB7079 a super-dense server platform ready to perform in the most demanding applications.
DDR4 memory also builds on the Broadberry GPU Server FT77CB7079 green credentials as power savings reach up to 40% over older generation memory.
The added benefit of hot-swap hard drives means that the Broadberry GPU Server FT77CB7079 can have any of its 8 hot-swap hard drives removed during maintenance whilst the system is running completely un-interrupted. The added benefit of hot-swap hard drives means that the Broadberry GPU Server FT77CB7079 can have any of its 8 hot-swap hard drives removed during maintenance whilst the system is running completely un-interrupted.Storage Technology
The Broadberry GPU Server FT77CB7079 supports 8x desktop and enterprise-class SATA hard drives, which represents the best cost per GB ratio storage technology.
The added benefit of hot-swap hard drives means that the Broadberry GPU Server FT77CB7079 can have any of its 8 hot-swap hard drives removed during maintenance whilst the system is running completely un-interrupted.Configure for your Network
The Broadberry GPU Server FT77CB7079’s ready to be deployed into your network environment with a wide-range of high-throughput connectivity options.
Configure the Broadberry GPU Server FT77CB7079 to match your application I/O demands and network infrastructure with up to 1x Intel Gigabit Ethernet Adaptors , Intel 10 Gigabit Ethernet Adaptors, Qlogic Fibre Channel Adaptors, Intel 25/40/50 Gigabit Ethernet Adaptors, Mellanox ConnectX-4 Series Ethernet Adaptors.
Whether your application demands the highest networking throughput, or you’re looking for a more modest enterprise-grade networking option such as Gb/E, the Broadberry GPU Server FT77CB7079 is totally customisable with a wide range of robust I/O connectivity options.
IPMI 2.0 & KVM over IP
Whereas most server manufacturers charge ongoing licence fees for IPMI, powerful, industry-standard server management is built in to the Broadberry GPU Server FT77CB7079 at no extra cost.
Using the dedicated 3rd LAN port or on-board Gigabit Ethernet ports, you can take full control of the server as though you were standing in front of it through your web browser from anywhere in the world through a pre-defined IP address and password.
Check the health of the Broadberry GPU Server FT77CB7079 components, fan speeds, temperatures, update firmware, check logs & set SMTP alerts for you pre-configure thresholds, and list the health of all your servers on one simple screen.Â
The Broadberry GPU Server FT77CB7079 IPMI feature also allows complete Keyboard Video and Mouse (KVM) control, and send CD/DVD Images over IP to install software & operating systems remotely.
Expand with PCI-Express Expansion
Configure the Broadberry GPU Server FT77CB7079 with up to 1x Intel Gigabit Ethernet Adaptors , Intel 10 Gigabit Ethernet Adaptors, Qlogic Fibre Channel Adaptors, Intel 25/40/50 Gigabit Ethernet Adaptors, Mellanox ConnectX-4 Series Ethernet Adaptors. With a wide range of enterprise-class PCI-Express add-on options available, the Broadberry GPU Server FT77CB7079 is a flexible platform for a wide-range of applications.
The added benefit of hot-swap hard drives means that the Broadberry GPU Server FT77CB7079 can have any of its 8 hot-swap hard drives removed during maintenance whilst the system is running completely un-interrupted.We're so confident in our great value solutions, If you find a cheaper genuine price for the same specifications elsewhere we'll match it.
