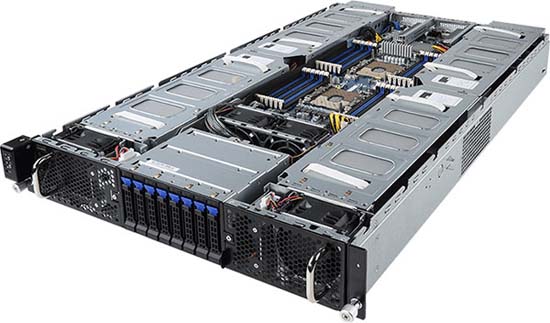

CyberServe Xeon SP2-G291-281 GPU Server

CyberServe Xeon SP2-G291-281 GPU Server Specifications

3 Years Warranty as Standard

Buy with confidence knowing all Broadberry CyberServe rack servers are backed up by our 3 year warranty, with further warranty upgrade options available.

Trusted CyberServe Server Platform

The Broadberry range of CyberServe^® rackmount are trusted as the server of choice for thousands of companies from SMBs to enterprise's across the globe.

Based on Tesla GPU

GPU SuperComputing servers offer massive processing power and HPC performance, considerably accelerating applications.

Supports SATA Drives

This system can be configured with SATA drives for cost-effective 12gb/s storage.

Small Form Factor Storage

The CyberServe Xeon SP2-G291-281 GPU Server boasts high density storage and ultimate energy efficiency, catering for up to 8x High-Performance 2.5" SSD or Hard Drives

Dual Intel Xeon SP Processors

Designed for the most demanding tasks, the dual socket range of CyberServe Xeon SP^® servers support the latest Intel Xeon^® processor Scalable series

Performance Breakthroughs

Powered by the revolutionary Intel Xeon SP processor range, CyberServe Xeon SP servers deliver massive improvements in every metric over the previous generation of Xeon E7 and E5 processors.

Designed for Cloud Computing

The Broadberry CyberServe Xeon SP^® range has been built from the ground up for private / hybrid cloud environments, clustering, virtualised infrastructure and database management.

Completely Redesigned QPI

The Broadberry CyberServe Xeon SP^® range has a completely redesigned QPI system, producing up to 21% improvement in data efficiency as well as a 50% reduction in idle power.

With IPMI Remote Management

All Broadberry CyberServe Xeon SP^® rack servers are compatible with iPMI functionality, enabling complete control and management of your server through IP.

Reduce I/0 Network Latency

Boasting Intel Integrated I/0 on the processor, Broadberry CyberServe Xeon SP^® servers accelerate data availability to the processing cores, reducing latency by up to 30%.

Intel^® AVX-512 Boosts Speed

Intel Advanced Vector Extensions 512, the latest x86 vector instruction set with up to two fused-multiply add units and other optimisations, accelerates performance for the most demanding computational tasks.

Intel^® QuickAssist Technology

Improving performance across applications and platforms, Intel QAT enhances security and compression performance in cloud, networking, big data, and storage applications.

More Advanced Omni-Path

The CyberServe Xeon SP^® range replaces InfiniBand technology with a newer, more advanced interconnect called Omni-Path, allowing for 100Gbps bandwidth with no loss of PCIe lanes.

Fully VMWare Compatible

The CyberServe Xeon SP2-G291-281 GPU Server has been carefully crafted to ensure full compatibility with VMWare, making it an ideal choice for use as a virtualisation server

Optional Hot-Swap Power Supply

The CyberServe Xeon SP2-G291-281 GPU Server is configurable with a hot-swap redundant power supply, meaning minimal down-time for mission critical applications.

Dimensions (WxHxD, mm)	2U 448 x 87.5 x 800
Motherboard	MG50-G20
CPU	Intel Xeon E5-2600 V3 processors Intel Xeon E5-2600 V4 processors NOTE: If only 1 CPU is installed, some PCIe, memory, network or I/O functions might be unavailable.
Socket	2 x LGA 2011-3 Mounting pitch: narrow ILM (56x94mm) Max. length of M4 screw threads: 3.7mm Screws longer than 3.7mm might damage the motherboard
Chipset	Intel C612
Memory	24 x DIMM slots DDR4 memory supported only Quad channel memory architecture RDIMM modules up to 32GB supported LRDIMM modules up to 64GB supported 3DS LRDIMM modules up to 128GB supported 1.2V modules: 1600/1866/2133/2400 MHz
LAN	2 x 10GbE SFP+ ports (Intel 82599ES) 1 x 10/100/1000 management LAN 2 x QSFP+ ports (supporting 56Gb/s FDR InfiniBand or 40GbE) card (Mellanox MT27508A1-FCCR-FV) in option (GC-MNXE2) 2 x 10Gb/s SFP+ LAN card (Mellanox MT27518A1-FCCR-XE) in option (GC-MNXE20)
Video	Integrated in Aspeed AST2400 2D Video Graphic Adapter with PCIe bus interface 1920x1200@60Hz 32bpp

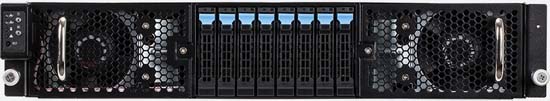

Storage	8 x 2.5" hot-swappable HDD/SSD bays
SAS	GC-MSLZ1 expansion card in option: 2 x Mini-SAS (for 8 x SAS 6Gb/s ports) LSI SAS2208 controller Hardware RAID 0/1/5/6/10/50/60 Hardware RAID 5/6 XOR Engine (single pass) Low profile PCIe 2.0 x8 mezzanine connector 76.8 x 98 mm
SATA	10 x SATA III 6Gb/s ports
RAID	Intel SATA RAID 0/1/5/10
Peripheral Drives	-

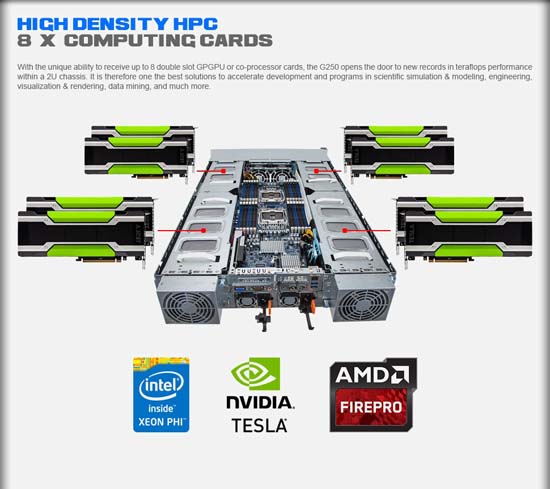

Expansion Slots	8 x PCIe x16 (Gen3 x16 bus) connectors supporting: Intel Xeon Phi cards NVIDIA cards AMD cards Please contact us for details about the supported card models 1 x Half-length low-profile slot 1 x PCIe x16 (Gen3 x8 bus) connector 1 x Proprietary PCIe x8 (Gen3 x8 bus) mezzanine connector

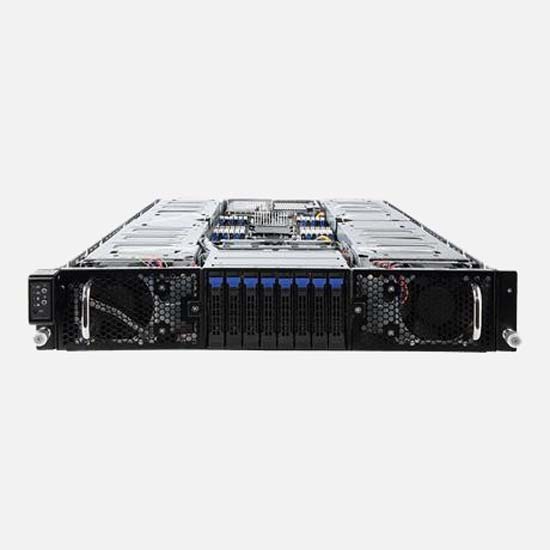

Front I/O	1 x Power button with LED 1 x ID button with LED 2 x LAN activity LEDs 1 x HDD activity LED 1 x System status LED 1 x Reset button

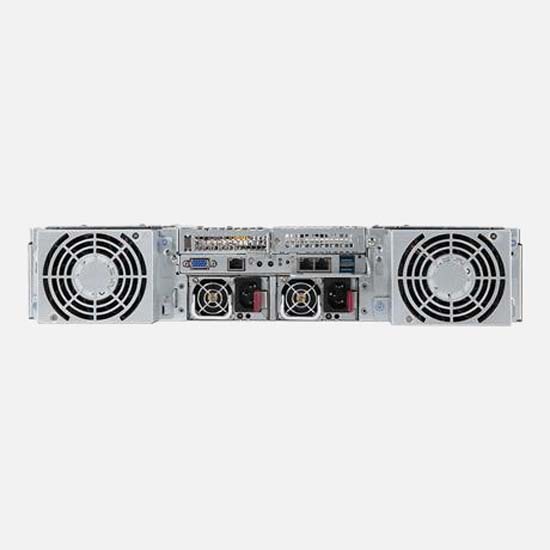

Rear I/O	2 x USB 3.0 1 x VGA 1 x Serial 2 x SFP+ 1 x RJ45 1 x Power button with LED 1 x ID button with LED 1 x Reset button 1 x NMI button 1 x System status LED
Internal I/O	1 x 18-pin power connector 1 x 14-pin power connector 2 x 8-pin power connectors 2 x 4-pin power connectors 10 x SATA III 6Gb/s ports 1 x USB 3.0 header 1 x USB 2.0 header 1 x TPM header 1 x HDD back plane board header 1 x 12-pin front panel header 1 x 23-pin front panel header 1 x JTAG header 2 x SATA SGPIO headers 1 x Front VGA header 1 x Serial header 1 x IPMB connector 1 x P12V standby connector 1 x PMBus selection jumper 1 x Clear CMOS jumper 1 x LT debug jumper
Backplane I/O	8 x SAS/SATA ports
TPM	1 x TPM header
Power Supply	2 x 2000W redundant PSU 80 PLUS Platinum AC input: - 1000W: 100-120V/ 12.5-10.5A, 50-60Hz - 1800W: 200-220V/ 10-9.5A, 50-60Hz - 1980W: 220-230V/ 10-9.8A, 50-60Hz - 2000W: 230-240V/ 10-9.8A, 50-60Hz DC output: - 11000W@100-120V - 1800W@200-220V - 1980W@220-230V - 2000W@200-240V
System Management	Aspeed AST2400 management controller Avocent MergePoint IPMI 2.0 web interface: Network settings Network security settings Users control Services settings IPMI settings Sessions control LDAP settings Power control Voltages, fans and temperatures monitoring System event log Events management (platform events, trap settings, email settings) Serial Over LAN vKVM & vMedia (launch, configuration)
OS Supported	Windows Server 2008 R2 (x64) Windows Server 2012 (x64) Windows Server 2012 R2 (x64) Red Hat Enterprise Linux 6.7 (x86/x64) Red Hat Enterprise Linux 7.2 (x64) SUSE Linux Enterprise Server 11.4 (x86/x64) SUSE Linux Enterprise Server 12 (x64) Ubuntu 12.04 LTS (x86/x64) Ubuntu 14.04 LTS (x86/x64) VMware ESXi 5.1 U2 VMware ESXi 5.5 U2 VMware ESXi 6.0 U1
Weight	31 kg (full packaging)
System Fans	8 x 80x80x38mm (15000rpm)
Operating Properties	Operating temperature: 10C to 35C Operating humidity: 8%-80% (non-condensing) Non-operating temperature: -40C to 60C Non-operating humidity: 20%-95% (non-condensing)
Part Numbers	Barebone with rail kit: 6NG250G51MR-00 Tool-less rail kit: 25HB2-A86100-K0R Power supply: 25EP0-220000-C2S NVIDIA M60/K80 power cable: 25CRI-300307-B0R (in option)
Packaging Content	1 x G250-G51 1 x Driver CD 2 x CPU heat sinks 1 x Rail Kit

The CyberServe Xeon SP2-G291-281 GPU Server is a 2U rackmount server configurable with 2x Xeon Scalable Processor Gen 2 series range of processors. Built using the latest enterprise-class server technology, the CyberServe Xeon SP2-G291-281 GPU Server has 8x 2.5" SATA and 12Gb/s SAS Hot-Swap Drives and is ideal for those requiring a combination of high performance and density with its 24x DDR4 ECC Registered memory banks providing up to GB of high-performance server memory. The CyberServe Xeon SP2-G291-281 GPU Server boasts as just a few of its core features.

The added benefit of hot-swap hard drives means that the CyberServe Xeon SP2-G291-281 GPU Server can have any of its 8 hot-swap hard drives removed during maintenance whilst the system is running completely un-interrupted. The added benefit of hot-swap hard drives means that the CyberServe Xeon SP2-G291-281 GPU Server can have any of its 8 hot-swap hard drives removed during maintenance whilst the system is running completely un-interrupted.

Storage Technology

The CyberServe Xeon SP2-G291-281 GPU Server supports 8x 2.5" desktop and enterprise-class SATA hard drives, which represents the best cost per GB ratio storage technology.

Originally designed and utilised in mobile applications such as laptops and notebooks, 2.5" hard drives are becoming ever increasingly used in servers due to their lower power consumption and space-saving characteristics. The added benefit of hot-swap hard drives means that the CyberServe Xeon SP2-G291-281 GPU Server can have any of its 8 hot-swap hard drives removed during maintenance whilst the system is running completely un-interrupted.

Configure for your Network

The CyberServe Xeon SP2-G291-281 GPU Serverâ€™s ready to be deployed into your network environment with a wide-range of high-throughput connectivity options.

Configure the CyberServe Xeon SP2-G291-281 GPU Server to match your application I/O demands and network infrastructure with up to 2x Intel Gigabit Ethernet Adaptors , Intel 10 Gigabit Ethernet Adaptors, Qlogic Fibre Channel Adaptors, Intel 25/40/50 Gigabit Ethernet Adaptors, Mellanox ConnectX-4 Series Ethernet Adaptors.

Whether your application demands the highest networking throughput, or youâ€™re looking for a more modest enterprise-grade networking option such as Gb/E, the CyberServe Xeon SP2-G291-281 GPU Server is totally customisable with a wide range of robust I/O connectivity options.

IPMI 2.0 & KVM over IP

Whereas most server manufacturers charge ongoing licence fees for IPMI, powerful, industry-standard server management is built in to the CyberServe Xeon SP2-G291-281 GPU Server at no extra cost.

Using the dedicated 3rd LAN port or on-board Gigabit Ethernet ports, you can take full control of the server as though you were standing in front of it through your web browser from anywhere in the world through a pre-defined IP address and password.

Check the health of the CyberServe Xeon SP2-G291-281 GPU Server components, fan speeds, temperatures, update firmware, check logs & set SMTP alerts for you pre-configure thresholds, and list the health of all your servers on one simple screen.Â

The CyberServe Xeon SP2-G291-281 GPU Server IPMI feature also allows complete Keyboard Video and Mouse (KVM) control, and send CD/DVD Images over IP to install software & operating systems remotely.

Expand with PCI-Express Expansion

Configure the CyberServe Xeon SP2-G291-281 GPU Server with up to 2x Intel Gigabit Ethernet Adaptors , Intel 10 Gigabit Ethernet Adaptors, Qlogic Fibre Channel Adaptors, Intel 25/40/50 Gigabit Ethernet Adaptors, Mellanox ConnectX-4 Series Ethernet Adaptors. With a wide range of enterprise-class PCI-Express add-on options available, the CyberServe Xeon SP2-G291-281 GPU Server is a flexible platform for a wide-range of applications.

Artificial Intelligence Server for HMRC Fraud Detection 6.9MB

Case Study

Ultra-Performance AI Server for Samsung 5.3MB

Case Study

Imperial College London High Performance Server for AI 3.3MB

Case Study

Xeon SP Dual Socket 1.8MB

Product Datasheet

Broadberry Price Guarantee

We're so confident in our great value solutions, If you find a cheaper genuine price for the same specifications elsewhere we'll match it.

In today’s climate we appreciate the importance of preserving working capital yet understand that businesses still need to invest in new technology. We are delighted to inform our customers that Finance is available from just £1000 + VAT via our Strategic Partner BlueStar.

Key Features

Terms from 2 – 5 years available
Tax advantages – Leasing is 100% tax allowable
Fast credit decisions – Credit approval typically secured within hours + eSign documents
Stage payment options – Ideal for phased installations. We can also fund the deposit
Cash flow – Preserve your working capital
Existing credit facilities remain unaffected
Flexibility – Upgrade, make additions or settle at any point during the term
Total solution finance – Finance the hardware, software and all delivered services
Finance Lease, Hire Purchase and Loans available
Leasing available to all limited businesses, including start-ups

You can finance the total solution including hardware, software and installation costs and BlueStar will be happy to advise you of the most suitable package for your organisation.

BlueStar’s leasing options have enabled our customers to spread the cost of a new solution typically over a 3 year period. All payments made on a lease can be offset against taxable profits which may improve tax efficiency. Leasing also provides a flexible upgrade path allowing our customers to add further equipment to their lease throughout the term.

Finance helps to remove cash flow concerns and allows our customers to acquire the right system for their business rather than what available cash reserves dictate. Information technology is an operating cost to your business, pay for the equipment as you use it and get an immediate return on your investment.

Do you need to replace outdated equipment but don’t have the budget to purchase today?

Call us today on 020 8997 6000 to find out how leasing can work for you. Finance is subject to status and available to businesses only.

The above figures have been provided by our finance partner Bluestar Leasing. All figures are indicative only, subject to VAT where applicable, final underwriting/credit approval, document administration fees, payments by direct debit and terms and conditions. The stipulated tax relief assumes a representative rate of 19% due to the scheduled corporation tax rate reductions over the coming years. For exact taxation benefits relevant to your business it is recommended that you seek professional financial advice from your accountant. Bluestar Leasing is a trading name of Blue Star Business Solutions Limited who are Authorised and Regulated by the Financial Conduct Authority. Available to Limitied Companies, PLCs, LLPs and Larger Partnerships (4 or more) only.

Dimensions (WxHxD, mm)	2U 448 x 87.5 x 800
Motherboard	MG50-G20
CPU	IntelÃ‚Â® XeonÃ‚Â® E5-2600 V3 processors IntelÃ‚Â® XeonÃ‚Â® E5-2600 V4 processors NOTE: If only 1 CPU is installed, some PCIe, memory, network or I/O functions might be unavailable.
Socket	2 x LGA 2011-3 Mounting pitch: narrow ILM (56x94mm) Max. length of M4 screw threads: 3.7mm Screws longer than 3.7mm might damage the motherboard
Chipset	IntelÃ‚Â® C612
Memory	24 x DIMM slots DDR4 memory supported only Quad channel memory architecture RDIMM modules up to 32GB supported LRDIMM modules up to 64GB supported 3DS LRDIMM modules up to 128GB supported 1.2V modules: 1600/1866/2133/2400 MHz
LAN	2 x 10GbE SFP+ ports (IntelÃ‚Â® 82599ES) 1 x 10/100/1000 management LAN 2 x QSFP+ ports (supporting 56Gb/s FDR InfiniBand or 40GbE) card (MellanoxÃ‚Â® MT27508A1-FCCR-FV) in option (GC-MNXE2) 2 x 10Gb/s SFP+ LAN card (MellanoxÃ‚Â® MT27518A1-FCCR-XE) in option (GC-MNXE20)
Video	Integrated in AspeedÃ‚Â® AST2400 2D Video Graphic Adapter with PCIe bus interface 1920x1200@60Hz 32bpp
Storage	8 x 2.5" hot-swappable HDD/SSD bays
SAS	GC-MSLZ1 expansion card in option: 2 x Mini-SAS (for 8 x SAS 6Gb/s ports) LSIÃ‚Â® SAS2208 controller Hardware RAID 0/1/5/6/10/50/60 Hardware RAID 5/6 XOR Engine (single pass) Low profile PCIe 2.0 x8 mezzanine connector 76.8 x 98 mm
SATA	10 x SATA III 6Gb/s ports
RAID	IntelÃ‚Â® SATA RAID 0/1/5/10
Peripheral Drives	-
Expansion Slots	8 x PCIe x16 (Gen3 x16 bus) connectors supporting: IntelÃ‚Â® Xeon Phi cards NVIDIAÃ‚Â® cards AMDÃ‚Â® cards Please contact us for details about the supported card models 1 x Half-length low-profile slot 1 x PCIe x16 (Gen3 x8 bus) connector 1 x Proprietary PCIe x8 (Gen3 x8 bus) mezzanine connector
Front I/O	1 x Power button with LED 1 x ID button with LED 2 x LAN activity LEDs 1 x HDD activity LED 1 x System status LED 1 x Reset button
Rear I/O	2 x USB 3.0 1 x VGA 1 x Serial 2 x SFP+ 1 x RJ45 1 x Power button with LED 1 x ID button with LED 1 x Reset button 1 x NMI button 1 x System status LED
Internal I/O	1 x 18-pin power connector 1 x 14-pin power connector 2 x 8-pin power connectors 2 x 4-pin power connectors 10 x SATA III 6Gb/s ports 1 x USB 3.0 header 1 x USB 2.0 header 1 x TPM header 1 x HDD back plane board header 1 x 12-pin front panel header 1 x 23-pin front panel header 1 x JTAG header 2 x SATA SGPIO headers 1 x Front VGA header 1 x Serial header 1 x IPMB connector 1 x P12V standby connector 1 x PMBus selection jumper 1 x Clear CMOS jumper 1 x LT debug jumper
Backplane I/O	8 x SAS/SATA ports
TPM	1 x TPM header
Power Supply	2 x 2000W redundant PSU 80 PLUS Platinum AC input: - 1000W: 100-120V/ 12.5-10.5A, 50-60Hz - 1800W: 200-220V/ 10-9.5A, 50-60Hz - 1980W: 220-230V/ 10-9.8A, 50-60Hz - 2000W: 230-240V/ 10-9.8A, 50-60Hz DC output: - 11000W@100-120V - 1800W@200-220V - 1980W@220-230V - 2000W@200-240V
System Management	AspeedÃ‚Â® AST2400 management controller AvocentÃ‚Â® MergePoint IPMI 2.0 web interface: Network settings Network security settings Users control Services settings IPMI settings Sessions control LDAP settings Power control Voltages, fans and temperatures monitoring System event log Events management (platform events, trap settings, email settings) Serial Over LAN vKVM & vMedia (launch, configuration)
OS Supported	Windows Server 2008 R2 (x64) Windows Server 2012 (x64) Windows Server 2012 R2 (x64) Red Hat Enterprise Linux 6.7 (x86/x64) Red Hat Enterprise Linux 7.2 (x64) SUSE Linux Enterprise Server 11.4 (x86/x64) SUSE Linux Enterprise Server 12 (x64) Ubuntu 12.04 LTS (x86/x64) Ubuntu 14.04 LTS (x86/x64) VMware ESXi 5.1 U2 VMware ESXi 5.5 U2 VMware ESXi 6.0 U1
Weight	31 kg (full packaging)
System Fans	8 x 80x80x38mm (15000rpm)
Operating Properties	Operating temperature: 10Ã‚Â°C to 35Ã‚Â°C Operating humidity: 8%-80% (non-condensing) Non-operating temperature: -40Ã‚Â°C to 60Ã‚Â°C Non-operating humidity: 20%-95% (non-condensing)
Part Numbers	Barebone with rail kit: 6NG250G51MR-00 Tool-less rail kit: 25HB2-A86100-K0R Power supply: 25EP0-220000-C2S NVIDIA M60/K80 power cable: 25CRI-300307-B0R (in option)
Packaging Content	1 x G250-G51 1 x Driver CD 2 x CPU heat sinks 1 x Rail Kit

The Intel Xeon Scalable Processor Family improves upon previous generation Intel Xeon E5 and E7 V4 generations in just about every metric.

Models Explained:


Entry Intel® Xeon® Bronze processors are performance optimized for small business and basic storage servers.	Mid Intel® Xeon® Silver processors offer the hardware-enhanced performance and security required for data center compute, network, and storage optimized for mid-sized and growing IT organisations.	High Intel® Xeon® Gold processors offer high performance, advanced reliability, and hardware-enhanced security optimized for demanding data center, hybrid-cloud compute, network, and storage workloads.	Enterprise Intel® Xeon® Platinum processors offer the industry's best performance for mission-critical and hybrid cloud workloads, real-time analytics, machine learning, and artificial intelligence, with monumental leaps in I/O, memory, storage, and network technologies.
up to 8 Cores	up to 12 Cores	up to 22 Cores	up to 28 Cores
up to 2 Sockets	up to 2 Sockets	up to 4 Sockets	up to 8+ Sockets
up to 1.5TB	up to 1.5TB	up to 6TB	up to 12TB

The CyberServe Xeon-SP range has been designed from the ground up for the latest industry advances for today's datacenter applications.

Powered by Intel Xeon Scalable Processors, the CyberServe Xeon-SP range of servers have the design flexibility to thrive across common applications and mission critical operations or to harness actionable insights from advanced real-time analytics and emerging imperatives like artificial intelligence, 5G, autonomous driving and more.

This agility enables you to seize new business opportunities from our increasingly data-fueled smart and connected world.

Skylake core microarchitecture, with data center specific enhancements
Intel AVX-512 with 32 DP flops per core
Data center optimized cache hierarchy -1MB L2 per core, non-inclusive L3
New mesh interconnect architecture
Enhanced memory subsystem
Modular IO with integrated devices
Intel Ultra Path Interconnect - (Intel UPI)
Intel Speed Shift Technology
Security & Virtualisation enhancements (MBE, PPK, MPX)
Optional Integrated Intel Omni-Path Fabric (Intel OPA)

	Intel Xeon Processor E5-2600 v4	Intel Xeon Scalable Processor
Cores Per Socket	Up to 22	Up to 28
Threads Per Socket	Up to 44 threads	Up to 56 threads
Last-level Cache (LLC)	Up to 55 MB	Up to 38.5 MB (non-inclusive)
QPI/UPI Speed (GT/s)	2x QPI channels @ 9.6 GT/s	Up to 3x UPI @ 10.4 GT/s
PCIe* Lanes /Controllers /Speed(GT/s)	40 / 10 / PCIe 3.0 (2.5, 5. 8 (GT/s)	48 / 12 / PCIe 3.0 (2.5, 5,8 GT/s)
Memory Population	4 channels of up to 3 RDIMMs, LRDIMMs, or 3DS LRDIMMs	6 channels of up to 2 RDIMMs, LRDIMMs, or 3DS LRDIMMs
Max Memory Speed	Up to 2400	Up to 2666
TDP (W)	55W-145W	70W-205W

Virtualisation with Broadberry VMware Compatible Servers

By consolidating servers onto a VMware compatible Broadberry server, you can enjoy a reduction in your IT infrastructure footprint.

The virtualisation market has grown exponentially since the mid-2000s and as has the demand for servers able to run VMware virtualisation software. While the majority of servers will be able to run VMware, these rack servers have been specially designed and then sent off for VMware ESXI 6.0 certification.

Servers Built for Compatibility with VMware^®

Built from the ground up for compatibility, these servers are ideal for running your virtualised IT infrastructure.These VMware certified servers are based on hardware that is enterprise-grade and industry compliant. This range servers can be configured with up to 16 cores for processing and up to 1/2 TB of memory.

	NVIDIA L4	NVIDIA RTX6000 ADA	NVIDIA L40S	NVIDIA H100	NVIDIA GH200
Application	Virtualised Desktop, Graphical and Edge Applications	High-end Design, Real-time Rendering, High-performance Compute Workflows	Multi-modal Generative AI, and Graphics and Videos Workflows	LLMs Inference, AI and Data Analytics	Generative AI, LLMs Inference, and Memory Intensive Applications
Architecture	Ada Lovelace	Ada Lovelace	Ada Lovelace	Hopper	Grace Hopper
SMs	60	142	142	114	144
CUDA Cores	7,424	18,176	18,176	18,432	18,432
Tensor Cores	240	568	568	640	576
Frequency	795 Mhz	915 MHz	1,110 Mhz	1,590 MHz	1,830 MHz
FP32 TFLOPs	30.3	-	91.6	51	67
FP16 TFLOPs	242	91.1	733	1,513	1,979
FP8 TFLOPs	485	-	1,466	3,026	3,958
Cache	48 MB	96 MB	48 MB	50 MB	60 MB
Max. Memory	24 GB	48 GB	48 GB	80 GB	512 GB
Memory B/W	300 GB/s	960 GB/s	864 GB/s	2,000 Gb/s	546 GB/s

Criteria	Broadcom	Intel	Nvidia
Portfolio Breadth
Long-life Supply
Advanced Security
Power and Thermals at High Speeds
Ecosystem Interoperability
Focused Investment on Foundational/Performance NIC
Advanced RDMA Support
AI/ML Scale

I/O	Broadcom	Intel	Nvidia
PCI-E Form Factor
2x 1G	5720-2P BCM95720A2003AC	I350-T2V2	-
4x 1G	5719-4P BCM95719A1904AC	I350-T4V2	-
2x 10GBaseT	P210TP BCM957416A4160C	X550-T2, X710-T2L	-
2x 10G	P210P BCM957412A4120AC	X557, X520-DA2, X710-DA2	MCX4121A
2x 25G	P225P BCM957414A4142CC	E810-XXVDA2, XXV710-DA2, XXV710-DA2T	MCX4121A, MCX512A, MCX512F, MCX621102AE/C/N, MCX623102AC/N
4x 25G	P425G BCM957504-P425G	E810-XXVDA4	MCX713104AS
2x 50G	P2100G BCM957508-P2100G	-	MCX414A, MCX516A, MCX623102AN
1x 100G	P1200G BCM957508-P1200G	E810-CQDA1	MCX515A, MCX555A, MCX623105AN
2x 100G	P2100G BCM957508-P2100G	E810-CQDA2	MCX516A, MCX623106AC/E/N/S/PN
1x 200G	P1200G BCM957508-P1200G	-	MCX623105AN
1x 400G	P1400GD BCM957608-P1400GDF00	-	MCX715105AS, MCX75310AAC/S
2x 200G	P2200G BCM957608-P2200GQF00	-	MCX755106AC/S
2x 100G	P2100G2 BCM957608-P2100GQF00	-	MCX713106AS
4x 100G	P4100G BCM957608-P4100GSF00	-	-
OCP 3.0 Form Factor
4x 1G	N41T BCM95719N1905C	I350T4OCPV3	-
2x 10G	N210TP BCM957416N4160C	X720-T2L	-
2x 10G	N210P BCM957412N4120C	-	-
2x 25G	N225P BCM957414N4140C	E810XXVDA2OCPV3	MCX4121A, MCX562A, MCX623432AC/E/N-, MCX6232AC/E/N, MCX631432AC/N
4x 25G	N425G BCM957504-N425G	-	-
2x 50G	N2100G BCM957508-N2100G	-	MCX516A, MCX623432AC/N
1x 100G	N1100G BCM957504-N1100G	E810-CQDA1OCPV3	MCX623432AC/N, MCX623435AC/E/N/MN, MCX565A/M
2x 100G	N2100G BCM957508-N2100G	-	MCX566A, MCX623436AC/E/N
1x 200G	N1200G BCM957508-N1200G	-	MCX623435AC/N
1x400G	N1400GD BCM957608-N1400GDP00	-	MCX75343AMC/S
2x 200G	N2200G BCM957608-N2200GQP00	-	MCX753436MC/S
1x 200G	N1200G2 BCM957608-N1200GQP00	-	MCX623435AC/N
4x 100G	N4100G BCM957608-N4100GSP00	-	-

I/O	Broadcom	Intel	Nvidia
PCI-E Form Factor
2x 1G	5720-2P BCM95720A2003AC	I350-T2V2	-
4x 1G	5719-4P BCM95719A1904AC	I350-T4V2	-
2x 10GBaseT	P210TP BCM957416A4160C	X550-T2, X710-T2L	-
2x 10G	P210P BCM957412A4120AC	X557, X520-DA2, X710-DA2	MCX4121A
2x 25G	P225P BCM957414A4142CC	E810-XXVDA2, XXV710-DA2, XXV710-DA2T	MCX4121A, MCX512A, MCX512F, MCX621102AE/C/N, MCX623102AC/N
4x 25G	P425G BCM957504-P425G	E810-XXVDA4	MCX713104AS
2x 50G	P2100G BCM957508-P2100G	-	MCX414A, MCX516A, MCX623102AN
1x 100G	P1200G BCM957508-P1200G	E810-CQDA1	MCX515A, MCX555A, MCX623105AN
2x 100G	P2100G BCM957508-P2100G	E810-CQDA2	MCX516A, MCX623106AC/E/N/S/PN
1x 200G	P1200G BCM957508-P1200G	-	MCX623105AN
1x 400G	P1400GD BCM957608-P1400GDF00	-	MCX715105AS, MCX75310AAC/S
2x 200G	P2200G BCM957608-P2200GQF00	-	MCX755106AC/S
2x 100G	P2100G2 BCM957608-P2100GQF00	-	MCX713106AS
4x 100G	P4100G BCM957608-P4100GSF00	-	-
OCP 3.0 Form Factor
4x 1G	N41T BCM95719N1905C	I350T4OCPV3	-
2x 10G	N210TP BCM957416N4160C	X720-T2L	-
2x 10G	N210P BCM957412N4120C	-	-
2x 25G	N225P BCM957414N4140C	E810XXVDA2OCPV3	MCX4121A, MCX562A, MCX623432AC/E/N-, MCX6232AC/E/N, MCX631432AC/N
4x 25G	N425G BCM957504-N425G	-	-
2x 50G	N2100G BCM957508-N2100G	-	MCX516A, MCX623432AC/N
1x 100G	N1100G BCM957504-N1100G	E810-CQDA1OCPV3	MCX623432AC/N, MCX623435AC/E/N/MN, MCX565A/M
2x 100G	N2100G BCM957508-N2100G	-	MCX566A, MCX623436AC/E/N
1x 200G	N1200G BCM957508-N1200G	-	MCX623435AC/N
1x400G	N1400GD BCM957608-N1400GDP00	-	MCX75343AMC/S
2x 200G	N2200G BCM957608-N2200GQP00	-	MCX753436MC/S
1x 200G	N1200G2 BCM957608-N1200GQP00	-	MCX623435AC/N
4x 100G	N4100G BCM957608-N4100GSP00	-	-

Features	Benefits
3.5-inch form factor DDR3 DRAM-based RAM drive	Integrated small-footprint solution eliminates the need for volatile DRAM
Dual Port 6.0Gb SAS host connect	Robust, high throughput SCSI-compatible interface for use in NAS and unified storage appliances to speed up storage performance for application acceleration
Low latency	Reduces file system overhead in enterprise appliances, improving efficiency and accelerating applications
PowerSafe technology	Provides data persistence and instant backup and recovery in the event of an unplanned power failure
Full data-path protection	Protects critical data from corruption
Hot pluggable	Designed for the easy removal and replacement of drives without system downtime
Wear resistant	Will not wear out, even under the most write-intensive enterprise workloads

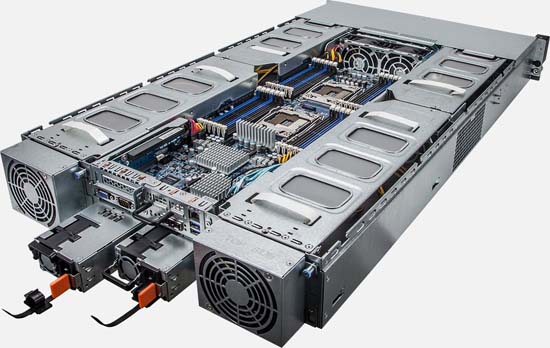

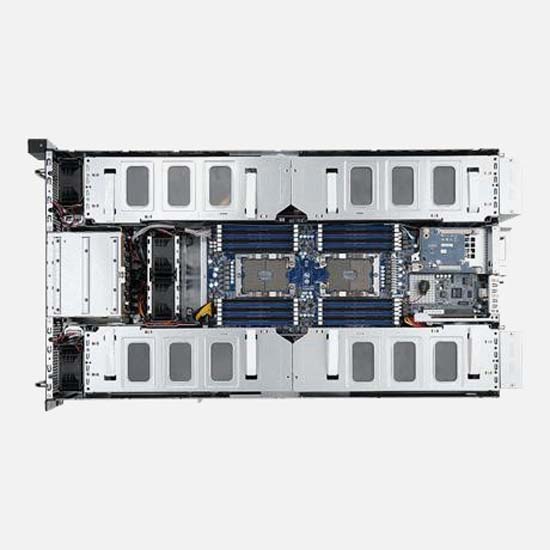

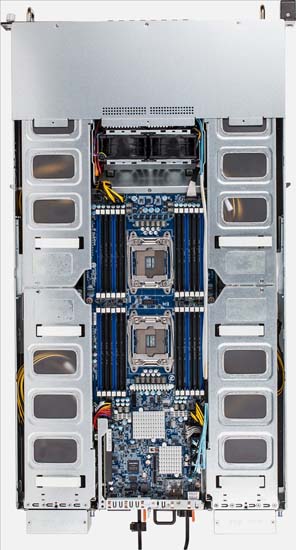

CyberServe Xeon SP2-G291-281 GPU Server^®

CyberServe Xeon SP2-G291-281 GPU Server Specifications

CyberServe Xeon SP2-G291-281 GPU Server^® Features

3 Years Warranty as Standard

Trusted CyberServe Server Platform

Based on Tesla GPU

Supports SATA Drives

Small Form Factor Storage

Dual Intel Xeon SP Processors

Performance Breakthroughs

Designed for Cloud Computing

Completely Redesigned QPI

With IPMI Remote Management

Reduce I/0 Network Latency

Intel^® AVX-512 Boosts Speed

Intel^® QuickAssist Technology

More Advanced Omni-Path

Fully VMWare Compatible

Optional Hot-Swap Power Supply

Product Datasheets and Case Studies

Broadberry Price Guarantee

Lease This System

Why Buy Broadberry

Intel Xeon Scalable Processor Re-architected from the ground up

Platform Improvements

Virtualisation with Broadberry VMware Compatible Servers

Servers Built for Compatibility with VMware^®

NVIDIA GPU Cards Configure your Broadberry GPU-Optimised Server with the right GPU card

Call a Broadberry Storage & Server Specialist Now: 020 8997 6000

Have a Broadberry Expert Contact You:

Latest News

links

Latest Reviews

Call Our UK Sales Team Now

CyberServe Xeon SP2-G291-281 GPU Server®

CyberServe Xeon SP2-G291-281 GPU Server Specifications

CyberServe Xeon SP2-G291-281 GPU Server® Features

3 Years Warranty as Standard

Trusted CyberServe Server Platform

Based on Tesla GPU

Supports SATA Drives

Small Form Factor Storage

Dual Intel Xeon SP Processors

Performance Breakthroughs

Designed for Cloud Computing

Completely Redesigned QPI

With IPMI Remote Management

Reduce I/0 Network Latency

Intel® AVX-512 Boosts Speed

Intel® QuickAssist Technology

More Advanced Omni-Path

Fully VMWare Compatible

Optional Hot-Swap Power Supply

Product Datasheets and Case Studies

Broadberry Price Guarantee

Lease This System

Why Buy Broadberry

Intel Xeon Scalable Processor Re-architected from the ground up

Platform Improvements

Virtualisation with Broadberry VMware Compatible Servers

Servers Built for Compatibility with VMware®

NVIDIA GPU Cards Configure your Broadberry GPU-Optimised Server with the right GPU card

Call a Broadberry Storage & Server Specialist Now: 020 8997 6000

Have a Broadberry Expert Contact You:

Latest News

links

Latest Reviews

Call Our UK Sales Team Now

CyberServe Xeon SP2-G291-281 GPU Server^®

CyberServe Xeon SP2-G291-281 GPU Server^® Features

Intel^® AVX-512 Boosts Speed

Intel^® QuickAssist Technology

Servers Built for Compatibility with VMware^®
